Connecters



MC4 Connectors

Rated Voltage : TUV 1000V DC / UL 600V DC

Rating Current :20A~30A

Suitable cable cross sections : 2.5m2~m6.0 mm2 14AWG~10AWG

Pin dimension:Φ4.0mm

Contact Material:Copper ,Tin Plated

Contact Resistance:≤ 5mΩ

Connector Material:PPO

Withdrawal Force:≥ 50N

Insertion Force:≤ 50N

Proof voltage: TUV 6000V AC(1Min) / UL 2200V DC(1Min)

Temperature Range:-40℃~+85℃

Branch Connectors

Rated Voltage : TUV 1000V DC / UL 600V DC

Rating Current :20A~30A

Suitable cable cross sections : 2.5m2~m6.0 mm2 14AWG~10AWG

Pin dimension:Φ4.0mm

Contact Material:Copper ,Tin Plated

Contact Resistance:≤ 5mΩ

Connector Material:PPO

Withdrawal Force:≥ 50N

Insertion Force:≤ 50N

Proof voltage: TUV 6000V AC(1Min) / UL 2200V DC(1Min)

Temperature Range:-40℃~+85℃

Please reload



Battery Cable Ends, Lugs, & Crimp Tools

Truelite Energy innovations carries a wide selection of battery lugs, cable ends, and battery crimping tool options. Battery lugs, also known as battery cable ends, provide the ability to connect a cable to a 12 volt battery system in Solar street lighting systems and solar power plant systems applications. Battery lugs are die-cast terminals with a round barrel that tapers to a flat surface with a hole for attachment to a battery post or a stud. While battery lugs will all have this similar shape, they are available with a range of different characteristics to meet the requirements needed on varying applications. Most notably are the differences in body material, performance, gauge size, and stud size of the cable ends. The styles of battery cable ends available include standard or tinned plated copper, heavy-duty, fusion, anti-rotational, and compression cable lugs. Standard copper cable ends are ideal for large gauge applications for power draw or grounding, while the tinned plated copper cable lugs reduce corrosion affects from harsh environments. Heavy-duty copper battery cable ends will deliver maximum voltage when needed, and the heavy die cast copper crimp cable ends provide a thicker and stronger connection. These heavy die cast cable ends are the most ideal terminal lug for large volume users.




Cables

  • Electron beam cross-linked of 4 sq mm, 6 sq mm, 10 sqmm cable

  • Dual wall insulation.

  • Excellent resistance to U.V, oil, greases, oxygen and ozone of cables

  • Excellent resistance to abrasion of 6 sq mm cable

  • Halogen free, flame retardant, low toxicity of cables

  •  Excellent flexibility and stripping performance of 6 sq mm cable

  • TUV approved of cables

Adaptor Brackets


TLAB-01
TLAB-01
press to zoom
TLAB-02
TLAB-02
press to zoom
TLAB-12
TLAB-12
press to zoom
TLAB-04
TLAB-04
press to zoom
TLAB-12
TLAB-12
press to zoom
TLAB-07
TLAB-07
press to zoom
TLAB-08
TLAB-08
press to zoom
TLAB-09
TLAB-09
press to zoom


Optics

Truelite offers industr y-leading optimizedoptical solutions, 15+ optics are available for virtually any application, providing exactingillumination performance.



Features



● Op􀁉cal types: 15+ op􀁉ons

● Material: High transmi􀁕ance PC

● Ligh􀁉ng Distribu􀁉on Type: Symmetric, Asymmetric, Narrow Beam,

Medium beam and Wide beam, complying with IESNA Type I, II, III, IV,V.

T1M
T1M
press to zoom
T2M
T2M
press to zoom
T3M
T3M
press to zoom
T3L
T3L
press to zoom
T4S
T4S
press to zoom
T5U
T5U
press to zoom
T5V
T5V
press to zoom

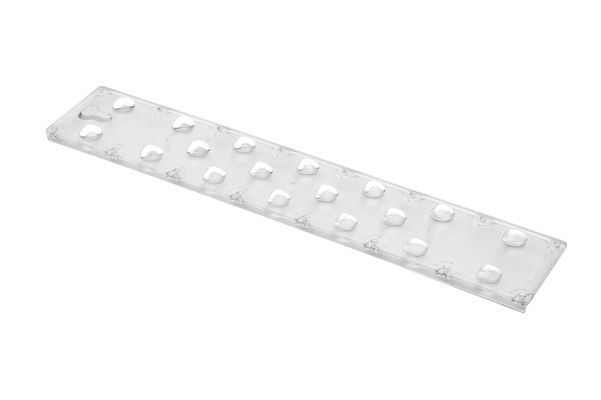

T5W
T5W
press to zoom
